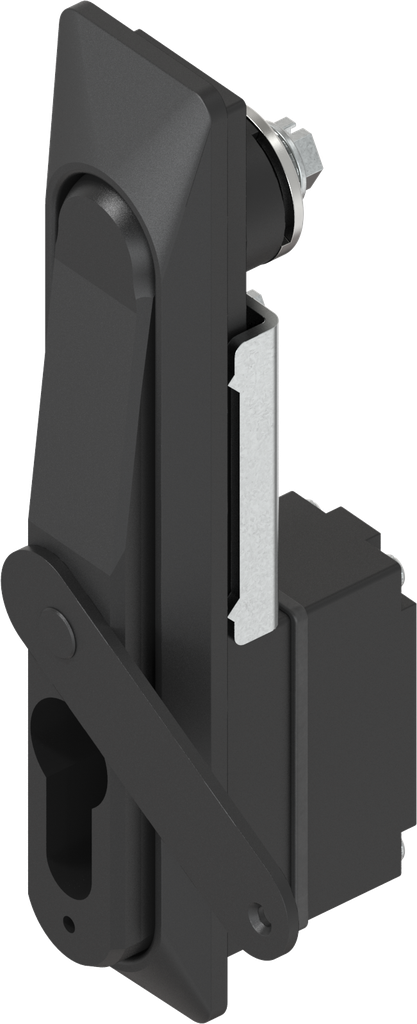

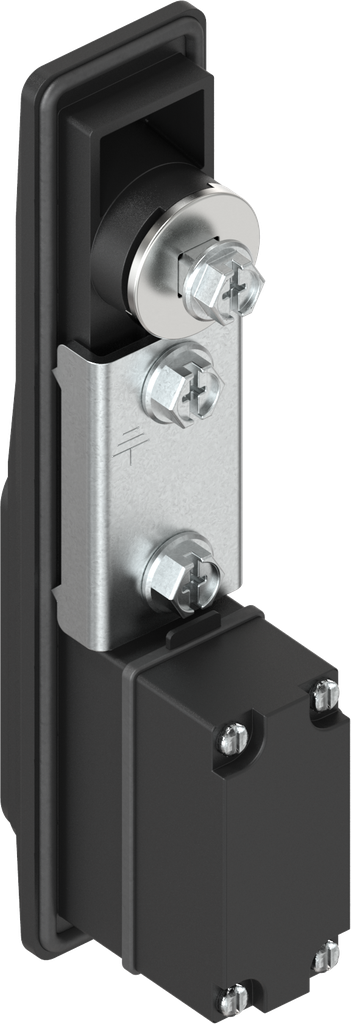

Swinghandle 1154 with electromagnetic release and emergency opening, keyed EH 333, Zinc die black powder-coated
Product information:
Vandalism resistant swinghandle
Internal Reference:
1154-U3
Standards:
Protection class IP 65
Barcode:
1154-U00003-0000000
Product Type:
Swinghandle, Lifthandle
Program:
1154
Catalog sheet:
3C-220
Material of the module :
Zinc die
Surface of the module:
black powder-coated
Door return variable:
Yes
Number of Possible Locking Points:
1 point, 2 points, 3 point
Number of Locking:
One locking set
Mounting Positions :
Inside the sealing
Grounding possible:
Yes
Foamed gasket:
Yes
GH Mass:
18 mm
Handle Art(1):
Swinghandle
Locking set:
Profile half cylinder A = 35
locking set cover:
Yes
Swivel Handle:
17.5 mm
Pan Handle Length:
163 mm
Door revolvable / reversible:
Yes
Door Version :
Left,Right
Door thickness:
2 mm
Locking components:
Cam
No Specifications
