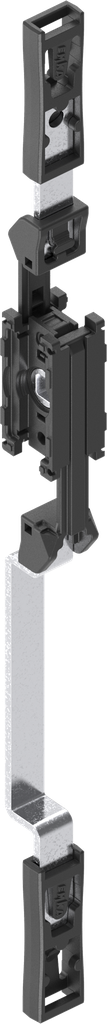

Crémone design étroit pour tringles plates, polyamide GF noir; 1122-U26-K

• Slim design Very compact construction Lock length, rod connection and stroke corresponds to 1121-U26-K Space saving up to 8 mm in the bending area Patented
• Very compact construction
• Lock length, rod connection and stroke corresponds to 1121-U26-K
• Space saving up to 8 mm in the bending area
• Patented

This rod control can be used in conjunction with the swinghandles or escutcheons with hooks from the 1125, 1225 and 1325 programs. Swinghandle and escutcheon with cap are not usable. ① = Quick assembly of the rod ② = The connector has disassembly aids for the upper and lower rod ③ = Center door ④ = All common closure types can be used ⑤ = Seal example: 1011-10 A = 39 mm Swinghandle with hook and profile half cylinder acc. to DIN 18252. A = 37 mm Swinghandle with hook and EMKA profile half cylinder with round cylinder, radial pin cylinder, insert or button. Alternatively, escutcheon with hook.

Swinghandle and escutcheon with cap are not usable.

① = Quick assembly of the rod
② = The connector has disassembly aids for the upper and lower rod
③ = Center door
④ = All common closure types can be used
⑤ = Seal example: 1011-10

A = 39 mm Swinghandle with hook and profile half cylinder acc. to DIN 18252.
A = 37 mm Swinghandle with hook and EMKA profile half cylinder with round cylinder, radial pin cylinder, insert or button. Alternatively, escutcheon with hook.

Turn 135° = Stroke 23.5 mm Turn 90° = Stroke 16 mm
