polyamide GF gris argent métallisé
tringle plate L = 501 - 600 mm, acier zingué
Avantages du produit:
- Compression function
- Locking system and cut out independent of compression latch system
- Corner guide can be used for additional locks in transverse installation
- High closing comfort
- Patented
Note sur le produit:

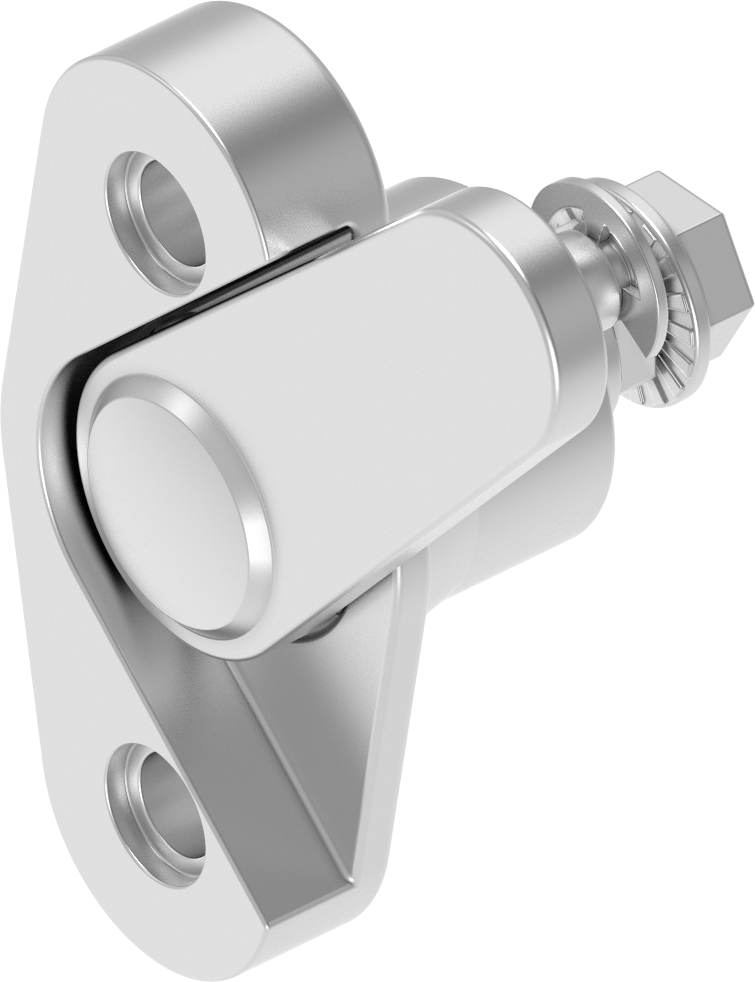

Locking point for compression latch system
Left version for (A) swinghandle with GH = 18
Right version for (B) and (C) quarter turn with GH = 18 with classic opening direction from 3 to 12 o'clock
For systems with corner guide, the connecting rods must be adapted to the respective door height.
Référence interne:
1121-SU537-LIPC
Normes:
DIN EN 45545-3 class E60 (fire protection)
Code-barres:
1121-SU0537-000LIPC
Type d'article:
Locking point
Programme:
1121
Page catalogue:
B2-120
Matériel de l'assemblage :
Stainless steel AISI 304
Surface de l'assemblage:
electropolished
Article protégé par un droit de protection:
Oui
Type de fixation stator :
nut fixing
Position de montage :
Inside the sealing
Valeur de compression :
4 mm
Butée de porte :
Left
Élément de verrouillage:
Cam
No Specifications
Voir tous les produits
Here you can find the product data sheets and CAD files of this product
