Note sur le produit:

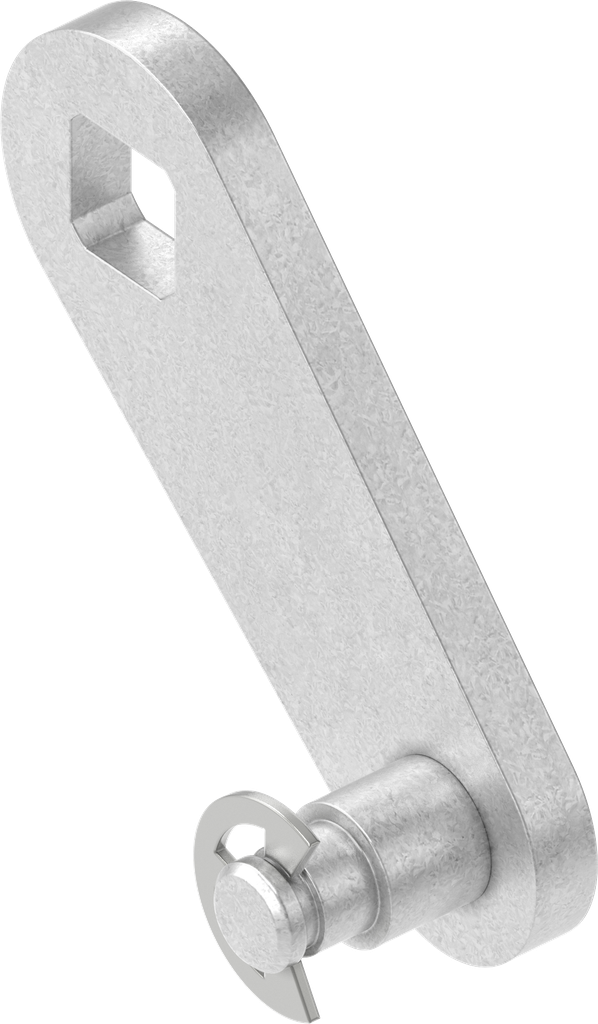

Rod control for compression latch system
Version A = Swinghandle with GH = 18
Version B = Quarter turn with GH = 18
Version C = HVACR systems with modular locking system
Fonction:
Compression latch suitable
for swinghandle programs 1125, 1150, 1180, 1225, 1325, 2100, 2225, 3000
for quarter turn program 1000
for HVACR systems with modular locking system program 1091
Référence interne:
1000-U980
Code-barres:
1000-U00980-0000000
Type d'article:
Rod control
Programme:
1000
Page catalogue:
3ZD-180
Matériel de l'assemblage :
Steel
Surface de l'assemblage:
zinc-plated
Nombre de points de fermeture possibles:
2 points, 3 point, 4 point, More than 4 points available on request
Position de montage :
Inside the sealing
Course de l'adaptateur:
Stroke 49.4 mm
No Specifications
